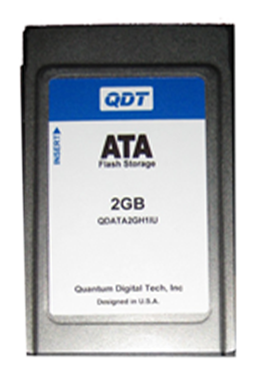

ATA FLASH CARDS
Quantum Digital’s ATA PC Card is the product of choice
Quantum Digital’s flash storage complies with industry’s standards and global regulatory compliance. Each device incorporates a proprietary flash controller and SLC Samsung Nand Flash Memory that provides the greatest flexibility to customer – specific applications while supporting key flash management features resulting in the industry’s highest reliability and endurance Key features include:
Built-in ECC engine detects up to 5-byte and corrects up to 4- byte errors.
Sophisticated block management and wear leveling algorithms guarantees 4,000,000 write/erase cycles.
Power-down data protection ensures data integrity and errors in case of power loss Lifecycle management feature allows users to monitor the device’s block management End applications include broadband data, military and aerospace, industrial control systems.
Quantum Digital’s ATA PC Card is the product of choice in applications requiring high reliability and high tolerance to shock, vibration, humidity, altitude, ESD, and temperature. The rugged industrial design combined with industrial temperature (-40°C to 85°C) testing and adherence to rigid JEDEC JESD22 standards ensures flawless execution in the harshest environments.
SECURE DIGITAL CRADS
The Secure Digital Industrial Grades provide a high reliable storage media in a very small space.
The Secure Digital Industrial Grades provide a high reliable storage media in a very small space. The simplicity of the SD and SPI protocols allows easy host design and integration.
The SD Memory Card support high security level of copyright protection and an easy to implement interface.
Quantum Digital’s Industrial Grade SD cards are specifically designed, manufactured and tested to withstand extreme environmental conditions and to improve system reliability and endurance.
Quantum Digital selects the highest reliability Single Level Cell (SLC) Flash for its superior endurance.
COMPACT FLASH CARDS
Quantum Digital’s flash storage products meet the latest industry compliance and regulatory standards including UL, FCC and RoHS.
Each device incorporates a proprietary cutting edge flash memory controller (hyperstone F3 series) that provides the greatest flexibility to customer-specific applications while supporting key flash management features resulting in the industry’s highest reliability and endurance. Key features include:
Built-in ECC engine detects up to 5-byte and corrects up to 4-byte errors Sophisticated block management and wear leveling algorithms guarantees 2,000,000 write/erase cycles Power-down data protection ensures data integrity and errors in case of power loss Lifecycle management feature allows users to monitor the device’s block management Quantum Digital’s CF Card is the product of choice in applications requiring high reliability and high tolerance to shock, vibration, humidity, altitude, ESD, and temperature.
The rugged industrial design combined with industrial temperature (40°C to 85°C) testing and adherence to rigid JEDEC JESD22 standards ensures flawless execution in the harshest environments.
IDE FLASH DRIVES
Quantum Digital’s 2.5” IDE Flash Drive is the product
Quantum Digital’s flash storage complies with industry’s standards and global regulatory compliance. Each device incorporates a proprietary flash controller and SLC Samsung Nand Flash Memory that provides the greatest flexibility to customer ‐ specific applications while supporting key flash management features resulting in the industry’s highest reliability and endurance Key features include:
Built‐in ECC engine detects up to 5‐byte and corrects up to 4‐ byte errors. Sophisticated block management and wear leveling algorithms guarantees 4,000,000 write/erase cycles.
Power‐down data protection ensures data integrity and errors in case of power loss Lifecycle management feature allow users to monitor the device’s block management.
Quantum Digital’s 2.5” IDE Flash Drive is the product of choice in applications requiring high reliability and high tolerance to shock, vibration, humidity, altitude, ESD, and temperature. The rugged industrial design combined with industrial temperature (‐40°C to 85°C) testing and adherence to rigid JEDEC JESD22 standards ensures flawless execution in the harshest environments.
IDE FLASH DISK MODULES
Quantum Digital’s solid-state Flash Disk Module with either a standard 44-Pin connector
Quantum Digital’s solid-state Flash Disk Module with either a standard 44-Pin connector or a standard 40-Pin connector. The module uses the standard IDE signals, common on IDE hard drives.
The module plugs directly into a standard IDE connector without need for a cable. This eliminates the installation confusion, the cost, and the potential failures commonly associated with interface cables.
The modules are available in vertical and horizontal plug-in.
OEM flash disk modules are the product of choice in applications requiring high reliability and high tolerance to shock, vibration, humidity, altitude, and temperature. Because there are no moving parts to service or maintain, flash disk modules are reliable alternatives to mechanical hard disk drives for high availability and mission critical applications.
While the inherent ruggedness and reliability of solid state storage relative to rotating hard drives is intuitive, new applications for OEM flash disk modules are emerging due to the low cost per usable megabyte. Most applications using embedded operating systems such as VxWorks™, Windows XP/embedded™, and Linux™ don’t have multi-gigabyte data storage requirements, and therefore a cost savings can be realized when using this robust media.
USB FLASH DISK MODULE
Quantum Digital’s USB Flask Disk Module (UFDM) provides non-volatile,
Quantum Digital’s USB Flask Disk Module (UFDM) provides non-volatile, solid-state storage in a compact design, making it perfectly suited for embedded applications. The standard USB 2.0 interface provides designers with a true plug-n-play storage device, allowing for short design cycles and fast time to market.
Quantum Digital selects the highest reliability Single Level Cell (SLC) Flash for its superior endurance. The flash management software that is embedded in the controller emulates a hard disk, enabling read/write operations that are identical to a standard, sector-based hard disk. Sophisticated wear leveling algorithms guarantee 2,000,000 Write/Erase Cycles, while automatic bad block management and a built-in ECC Engine guarantee the highest data reliability.
Based on the Reed-Solomon algorithm, the ECC engine can detect up to 5-byte errors and correct up to 4-byte errors per 512 blocks.
USB Flash Disk Module is available in standard and low profile horizontal type with fixed hole, standard 10 pins 2.54mm pin pitch USB female connector or low profile
10 pins 2.0mm pin pitch USB female connector, specifically suited for designs that have Z-height constraints. High performance, high reliability and low cost per MByte make the USB Flash Disk Module the product of choice in embedded applications, such as Gaming, POS Workstations, Networking Equipment and Industrial PCs.
USB FLASH DRIVE
Quantum Digital’s Industrial Grade USB Flash Drive (UFD) is more than just portable storage.
Quantum Digital’s Industrial Grade USB Flash Drive (UFD) is more than just portable storage. Tailored for industrial applications that require high reliability and data throughput, it provides non-volatile, industrial grade solid-state storage in a thumb-drive package. In addition, laser-etched manufacturing information allows for lot traceability and complete info on the Bill of Materials.
The Industrial Grade UFD is available in an ESD rated enclosure (with LED light indicator) for applications that require NEBS Level 3 Quantum Digital’s U2, state-of-the-art, USB 2.0 flash memory controller is incorporated in the Industrial Grade UFD, providing high data integrity and endurance.
The flash management software that is embedded in the controller emulates a hard disk, enabling read/write operations that are identical to a standard, sector-based hard disk. Sophisticated wear leveling algorithms ensures greater flash endurance, while automatic bad block management and a built-in ECC Engine guarantee the highest data reliability. Based on the BCH error correct algorithm, the ECC engine can correct up to 6-bit errors per 512 bytes.compliancy. The ESD-rated enclosure has been tested for immunity from ESD for 8KV contact and 15KV air.
Multimedia Cards
The Industrial Grades MMCplus is a removable flash card, measuring 24mm x 32mm x 1.4mm.
Quantum Digital’s Industrial Grade MMCplus cards are specially designed, manufactured and tested to withstand extreme environmental conditions and to improve system reliability and endurance.
At the heart of each card, there is an advanced microcontroller that performs elaborate Flash management including 5-Bytes on-the-fly Error Detection and 4Bytes Correction (EDC/ECC); bad block management (BBM) and extensive wear leveling.
Quantum Digital selects the highest reliability Single Level Cell (SLC) Flash for its superior endurance. This combination allows achieving 2,000,000 logical program/erase cycles. The MMCplus has no moving parts inside. As such, it is made to withstand extreme shock and vibration. Quantum Digital manufacturing process and test methodology makes the card even more robust. In fact, to assure that the cards shipped meets the rigorous threshold set by the OEM customers, each card is extensively tested at Quantum Digital’s manufacturing facility to guarantee perfect functionality in any conditions. Quantum Digital provides rigorous bill of material control as an additional guarantee for the customer, ensuring long term product stability and availability. The MMCplus can be accessed through 2 interfaces. The card can operate in MMC mode or in SPI mode. While the MMC interface provides high performance with 1 bit, 4 bit, or 8 bit data transfer, the SPI mode allows easy integration in any type of application at lower performance. Quantum Digital’s Industrial Grade MMCplus cards are specially designed, manufactured
Products mSATA
Quantum Digital’s mSATA flash storage products meet the latest industry compliance and regulatory standards including UL, FCC and RoHS.
Features
Quantum Digital Technology support the next-generation Serial ATA interface and built around a powerful controller. The new SATA III 6Gb/s mSATA SSD delivers blazing fast performance and long-term reliability. The compact mSATA form factor makes it perfect for use in space-restricted applications that can support many portable devices such as tablet and handheld applications as well PCs, and slim servers.
